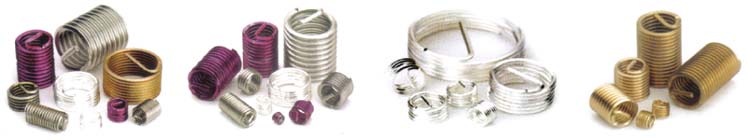

BaerCoil® Wire Thread Inserts - Materials

Materials
Tensile Strength
Temperature
resistance
Examples of use
Stainless Steel V2A
AISI 304
Material No.: 1.4301
X5CrNi18-10		 >1400 N/mm² 315°C long-term
425°C short-term		 Standard applications for all property classes and materials
for Thread Repair and
Thread Reinforcement
Stainless Steel V4A
AISI 316
X5CrNiMo17-12-2
Material No.: 1.4401
 >1400 N/mm² 315°C long-term
425°C short-term		 - increased corrosion protection
- low thread friction
- for high alloyed CrNi steel screws		 general lightweight construction
sea water and chlorine-containing water
Inconel X750
NiCr15Fe7TiAl
Material No.: 2.4669 		>1150 N/mm² 550°C long-term
750°C short-term		 - high thermal load
- high corrosion protection		 - aerospace technology
- turbocharger
- aeroplane engines
- turbines
- thermal power plants
Nimonic 90
NiCr20Co18Ti
Material No.: 2.4632 		>1150 N/mm² 600°C long-term
900°C short-term
Bronce
CuSn6
CW452K
Material No.: 2.1020 		> 900 N/mm² 250°C long-term
300°C short-term		 - translation threads
- CrNi screws
- Cu workpieces
- non-magnetic

applications in sea water.
best electric conductivity
Further materials like Nitronic 60, Inconel 625, Hastelloy and special materials - on request

BaerCoil® Wire Thread Inserts - Surface Treatments

surface treatments
color
applications

Cadmium Plating

 Iridescent yellow Provides high corrosion resistance and lubrication to prevent galling. Suitable up to 250°C
Zinc Plating
 White

Provides corrosion resistance as an alternative to Cadmium.
Silver Plating Silver white To reduce galling of threads at high temperatures.
Cadmium Plate &
Olive Drab		 Olive Drab As specified on US military specs such as NASM21209.
Dry Film Lubricated Grey Additional lubrication in high friction applications. Recommended for use with Screw Grip inserts.
BaerCoilGuard Glossy Black Prevents galvanic corrosion between insert and patent material. Eliminates the need for zinc primers. Improves installation productivity.
